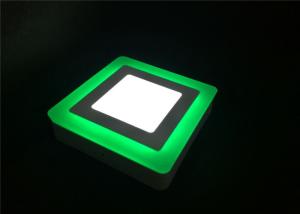

Ceiling Led Panel Light Double Color White+Green Square Surface Mounting 6W+3W
Superb Features for 6W + 3W Square Green Edge Surface Mount LED Panel Light
Yes , it’s incredible ! just to switch on this light and you’ll achieve a stunning Green and white LED lighting display , to flick the switch once more for a dazzling white alone , and again for just Green. Double color panel lights are used specially for special lighting such as decorative lights for holiday , event , show exhibition , hotels , clubs , and shipping malls .
The most importance is that you can choose the light way you like , its fitting will actually save you energy . Indeed, the inner LED will consume just 6 watts while the outer ring requires 3 watts making a total 9 watts for all these great features.
Unlike traditional bulbs , you won’t have to worry about replacing these built-in LEDs because they have an incredibly long life expectancy. Yes, with a 40,000 hour lifespan, it can work for about 14 years according to 8 hours each day.
This creates a highly modern effect, cemented by the fact that you can choose whether you want each one on or not! When you switch it on, both lights will be on. Switch it off and back on, and only the cool white (6000K) light will be on.
| Item No: |
XT-SSM-6+3W.SQ |
| Item Name: |
Green Edge Square Surface 9W LED Panel Light |
| Lamp Power: |
6W(cool white) + 3W(green) |
| Dimensions: |
145mm (W) ˣ 145mm (L) ˣ 40mm(H) |
| Colours Optional |
white+pink / white+green / white+red / white+warm white
white+blue / white+white |
| Material: |
Die Cast Aliminium + Light Guide Plate |
| Luminous Flux: |
Spot White Light : 420-480 lms |
| Input Voltage: |
AC85-265V |
| Output1: |
DC 6-20V 300±5% |
| Output2: |
DC 15-28V 300±5% |
| Frequency Range: |
50/60Hz |
| LED Type: |
2835 SMD |
| Color Rendering Index(CRI): |
Ra>70/80 |
| Power Factor(PF): |
>0.5 |
| Beam Angle: |
120° |
| Working Lifetime(Hour) : |
>40000 hrs |
| IP Rating : |
IP40 |
| Color Temperature: |
6000K |
| Luminous Efficiency: |
65-80lm/w |
| TC: |
80°C |
| TA: |
50°C (max) |
| Warranty: |
2 years |
Attention
1. The product should be installed by trained electricians.
2. Product and flammable materials to ensure at least 0.2m distance, to ensure that the installed zenith .
There are 2 centimeters high gap , lamps are installed in the ceiling which cannot be.
3. Non professional personnel shall not disassemble or repair this unit.
4. For indoor lighting only
More Watt to meet your full demand
| Shape |
Installation |
Model No |
Wattage (W) |
Size (mm) |
|
Round
|
Surface
|
XT-SSM-3+3W.R |
3W+3W |
Ø105×40 |
| XT-SSM-6+3W.R |
6W+3W |
Ø145×40 |
| XT-SSM-12+4W.R |
12W+4W |
Ø190×40 |
| XT-SSM-18+6W.R |
18W+6W |
Ø240×40 |
| XT-SSM-24+12W.R |
24W+12W |
Ø320×40 |
| XT-SSM-36+36W.R |
36W+36W |
Ø390×40 |
|
Square
|
Surface
|
XT-SSM-3+3W.SQ |
3W+3W |
105×105×40 |
| XT-SSM-6+3W.SQ |
6W+3W |
145×145×40 |
| XT-SSM-12+4W.SQ |
12W+4W |
190×190×40 |
| XT-SSM-18+6W.SQ |
18W+6W |
240×240×40 |
| XT-SSM-24+12W.SQ |
24W+12W |
320×320×40 |
| XT-SSM-36+36W.SQ |
36W+36W |
390×390×40 |
